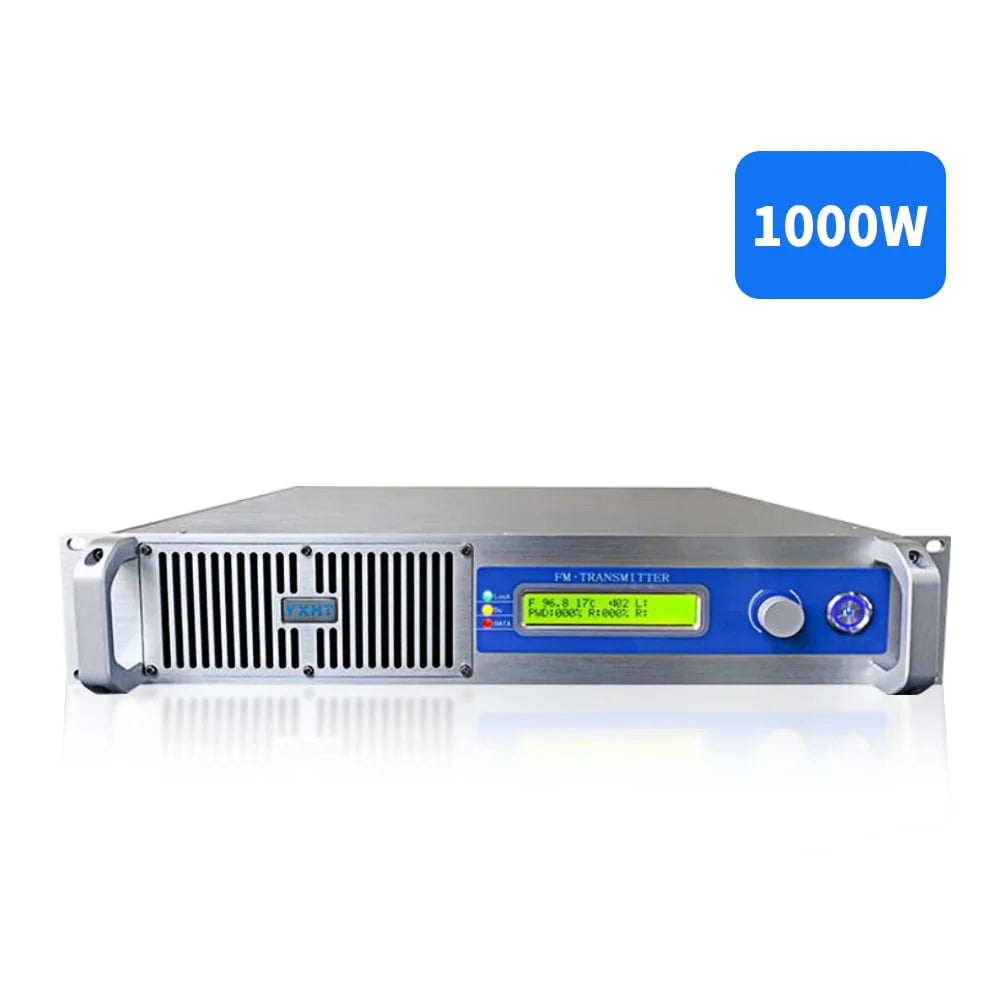

1000W Radio Station FM Church Transmitter, YXHT 1KW Long Range FM Transmitter
Sale price
$39.48
Regular price $62.00
Skip to product information
Technical Specifications
1. Frequency Setting step�?0KHz
2.Carrier Frequency precision：�?00Hz
3. Residual Wave Radiation：≥65dBc
4.Audio Input Impedance�?00Ω,Balance
5.Separation�?0dB Pilot Signal Modulation�?%~10%
6.Audio Input Level：�?0dBm,step 0.01dB
7. S/N：≥75dB(30H~15kHz,100%)
8. Audio Harmonic Distortion�?lt;0.05%
9.Audio response�?±0.05dB(30Hz~15KHz)

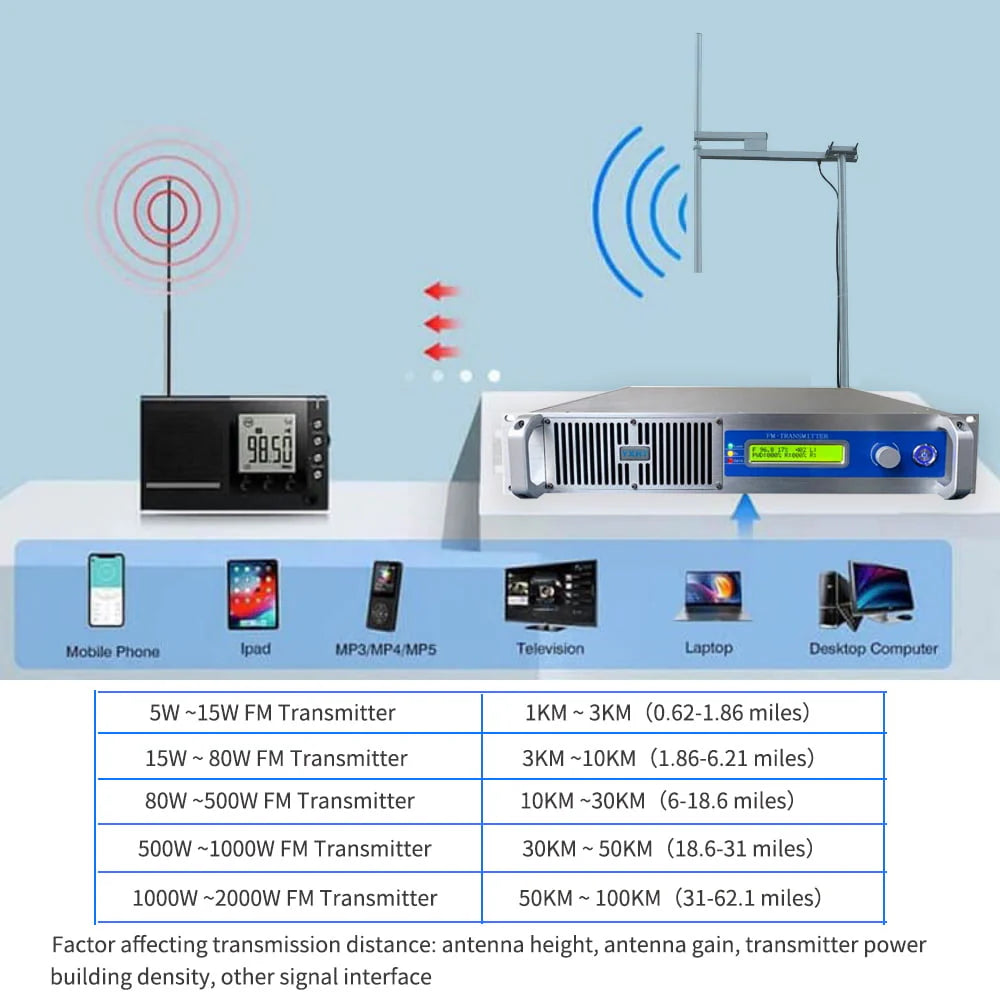

Below are the approximate range of different power FM Transmitters. ( The range is diameter )
0.1W ~ 5W FM Transmitter :100M ~1KM
5W ~15W FM Transmitter : 1KM ~ 3KM
15W ~ 80W FM Transmitter : 3KM ~15KM
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
Outstanding features
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.

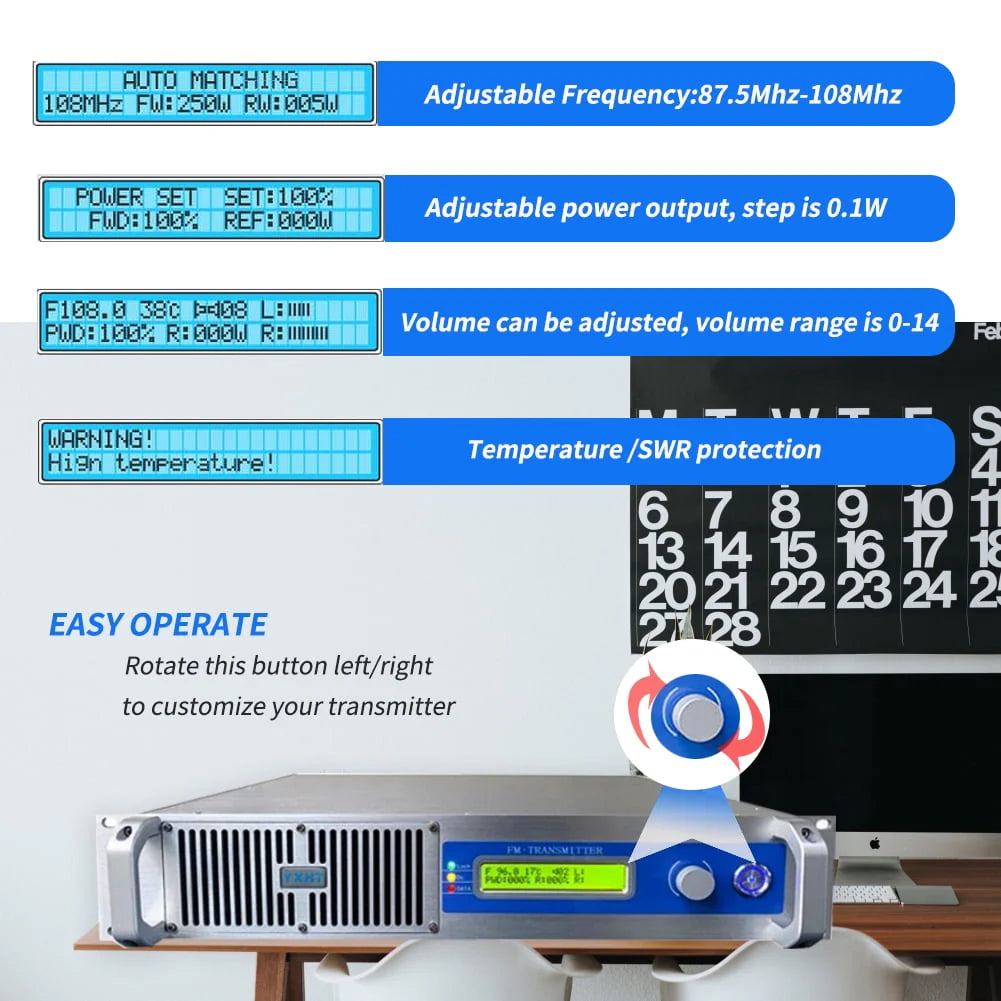

4) ADJUSTABLE POWER OUTPUT The RF out of this 1000w FM transmitter is continuously adjustable from 0-1000 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...1000w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.

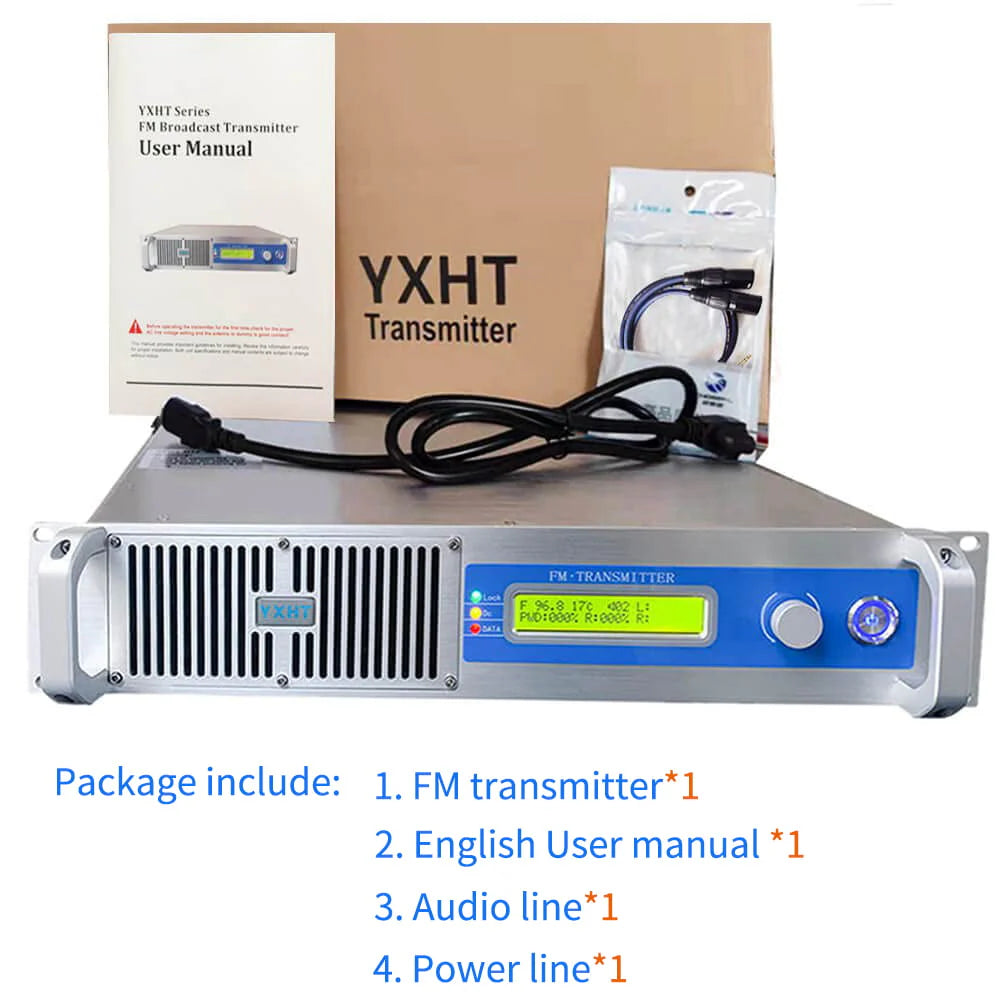

Package Included:
One 1000W FM Transmitter
1*Audio line
1*Power line
1*English manual instruction
1000W Radio Station FM Church Transmitter, YXHT 1KW Long Range FM Transmitter
Sale price
$39.48
Regular price $62.00
1. Frequency Setting step�?0KHz
2.Carrier Frequency precision：�?00Hz
3. Residual Wave Radiation：≥65dBc
4.Audio Input Impedance�?00Ω,Balance
5.Separation�?0dB Pilot Signal Modulation�?%~10%
6.Audio Input Level：�?0dBm,step 0.01dB
7. S/N：≥75dB(30H~15kHz,100%)
8. Audio Harmonic Distortion�?lt;0.05%
9.Audio response�?±0.05dB(30Hz~15KHz)
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
0.1W ~ 5W FM Transmitter :100M ~1KM
5W ~15W FM Transmitter : 1KM ~ 3KM
15W ~ 80W FM Transmitter : 3KM ~15KM
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
Outstanding features
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 1000w FM transmitter is continuously adjustable from 0-1000 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...1000w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.
Package Included:
One 1000W FM Transmitter
1*Audio line
1*Power line
1*English manual instruction
