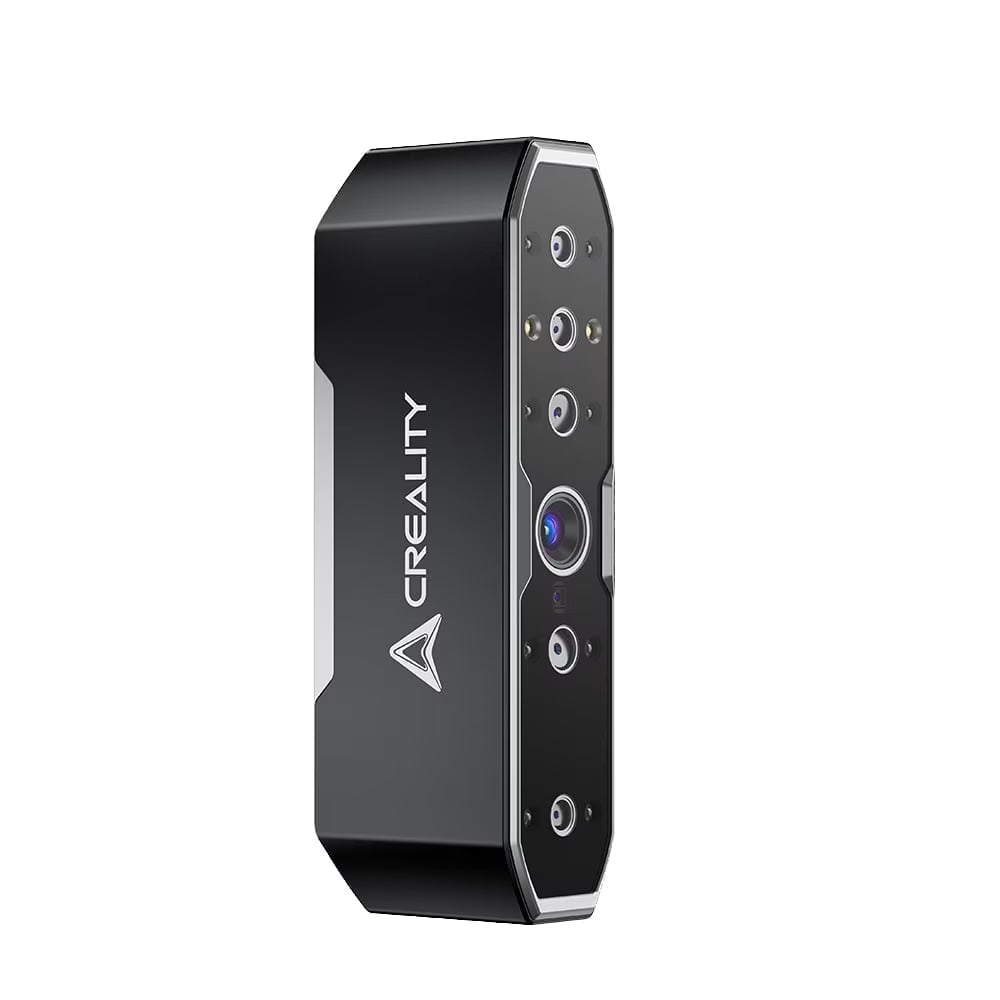

Creality CR-Scan Otter 3D Scanner Kit High Accuracy 0.02mm with 8 LED Infrared Lights 24 Bit Full-Color Scan, Noiseless, Sensitive Operation for Windows/macOS

Various Size Options

Innovative Four-lens Stereo Vision. Proficient in handling both large and small scans. Two sets of dual lenses, catering to details and various sizes�� A set of long-focal dual lenses for scanning small objects, providing richer details; a set of short-focal dual lenses for scanning large objects, covering a wider range of sizes.

Capture SMALL & BIG Objects

The CR-Scan Otter realizes possibilities of scanning various objects, ranging in size from 10*10*10mm to 2000*2000*2000mm, from tiny coins to large vehicles, all covered in one scanner. The scanning distances range from 110mm3 to 1200mm3 to effectively capture items of versatile sizes.

Anti-shake, Smooth and Efficient Scanning

Equipped with One-Shot 3D imaging technology, the CR-Scan Otter is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

Ultra-High Precision, Rich in Detail

Otter adopts the state-of-the-art structure-light stereo-matching algorithm and optical design to faithfully reproduce the authentic texture and contours of objects. The scanning precision up to 0.02mm ensures every detail is sharp and clear.

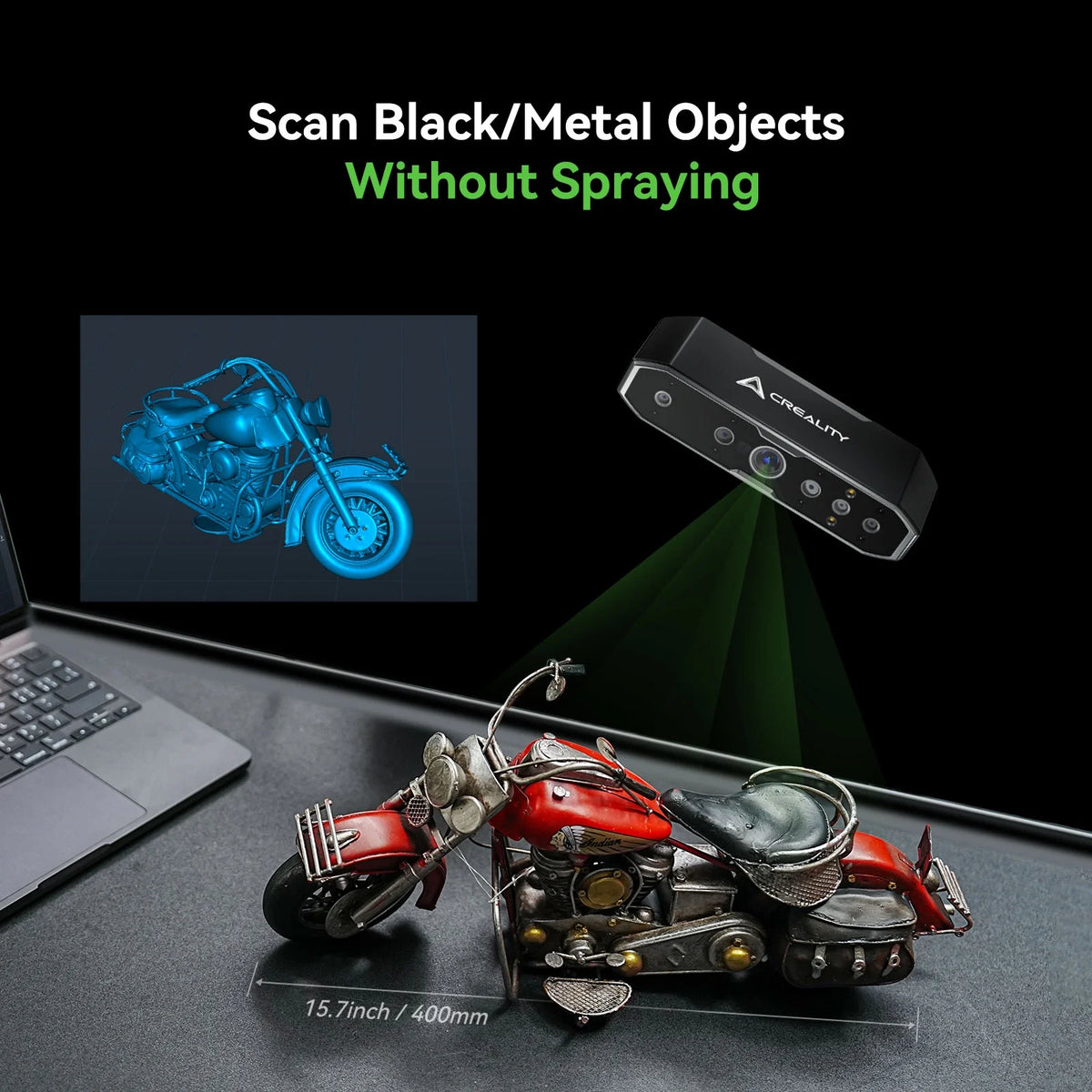

Scan Black/Metal ObjectsWithout Spraying

Even without scanning spray, you can scan cars, car parts, tires, and other black/metal objects to get the desired model effect.

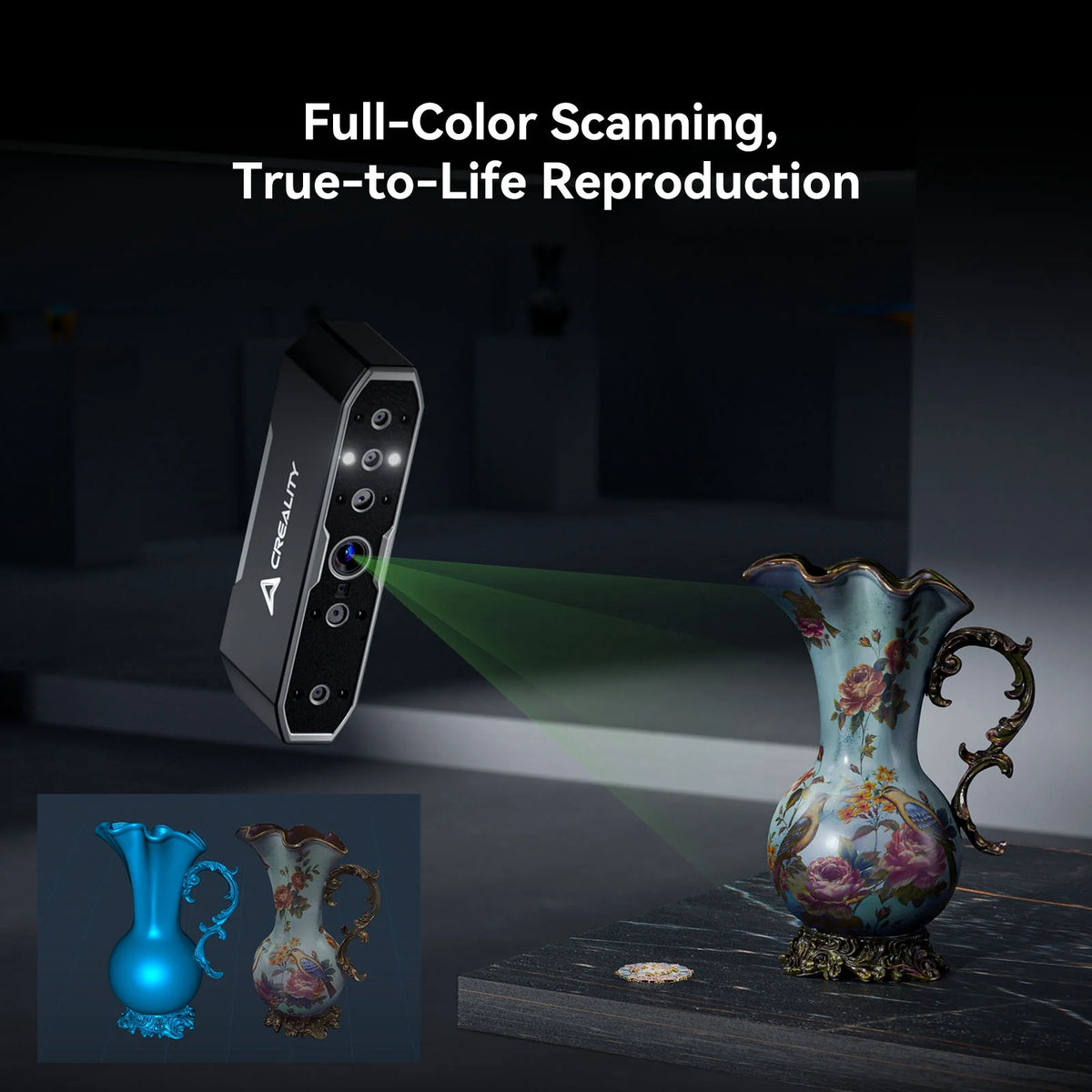

Full-Color Scanning, True-to-Life Reproduction

24-bit Full-Color Scanning

Equipped with a million-pixel full-color RGB camera and an exclusive color mapping algorithm, ensuring exceptional capture of model details and colors.

Outdoor Scanning

Outdoor Scanning Engineered with advanced DOE (Diffractive Optical Element) 3D structure-light technology, CR-Scan Otter has higher environmental adaptability and maintains excellent performance even in sunlight (<30000 lux).

Intuitive Software, Powerful Features

CrealityScan is a professional 3D scanning software with excellent user-friendliness and powerful image and point cloud processing capabilities. With its step-by-step tutorials, one-click model processing, and model editing features, it can easily kickstart your effortless scanning journey.

Supports Marker Dots Scanning

With 8 infrared lights, it better tracks marker points, applicable to objects with fewer scanning features. Under marker dots mode, it will achieve higher accuracy.

Elevate Scanning Experience

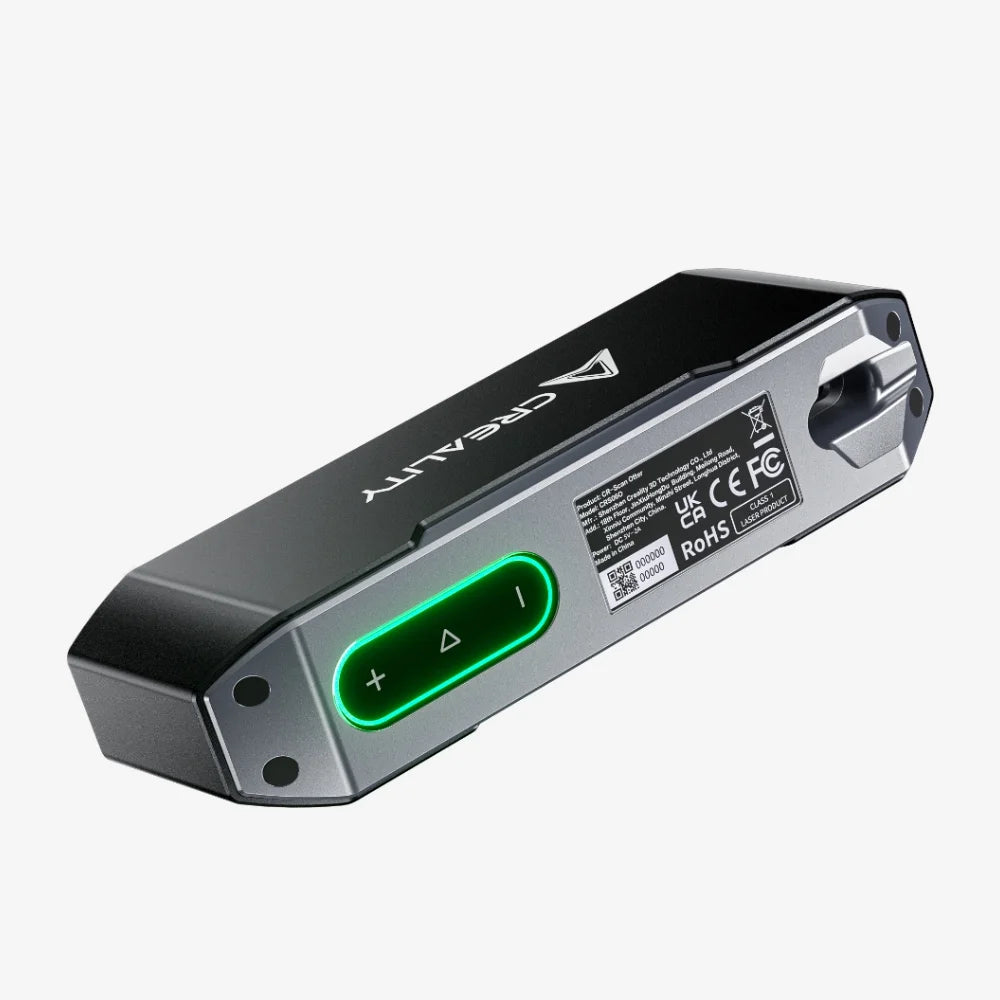

Ring indicator lights provide real-time scanning status; It allows for real-time exposure adjustment and offers comfortable and simple operation.

3D Printing Seamlessly Connected to Scanning

Effortlessly generate precise, print-ready 3D models of virtually any objects without requiring time-consuming manual creation in complex 3D modeling software.

Metal Body, Exquisite and Beautiful

Robust Exterior, Detail Highlights, Silent Scanning, Peaceful Creation, Portable

Specification:

Accuracy: Up to 0.02mm @ 60mm

3D Resolution: 0.05-2mm

Scanning Speed: Up to 20fps

Min. Scan Volume:10mm x 10mm x 10mm

Single Capture Range: Max. 1350x840mm@1000mm

Technology: Infrared structured light

Working Distance: 110mm-1000mm

Color Mapping: YES

Alignment Modes: Geometry/Marker/Texture

Output Format: OBJ/STL/PLY

IMU: YES

Color Supplemental Light: 2 white LEDS

Marker Recognition Enhancement: 8 infrared LEDs

Laser Safety: Class I (eye safe)

System Support: Windows/macOS(*Wireless scanning accessories are required for iPhone iOS/Android)

Buttons: Touch

Audible prompt: Yes

Calibration board: Yes

Operating Temperature: -10��C to 40��C

Operating Humidity: 0-90% RH

Input Power: 5V3A

Data Interface: Type C/USB3.0/USB2.0

Device Dimensions: 165mm��37mmx59mm

Device Weight: 390g
