Eastwood 250 Amp MIG Welder

Get the power you need for big welding jobs at a remarkably low price thanks to the Eastwood MIG 250. This is our most advanced MIG welder that can be used on 20-gauge sheet metal up to ?-inch steel plates. The infinitely adjustable knob allows you to set the amperage anywhere between 50 and 250 amps for greater control. Even at the highest setting, you can weld for up to six minutes before needing a break. State-of-the-art inverter technology means this portable Eastwood MIG welder clocks in at just 46 pounds �� half that of similar welders from leading brands

Specifications

Rated Electrical Output: 240 VAC: 50/60HZ: 50-250 AMP/120 VAC: 50/60HZ:50-140 AMP
No Load Voltage: 61 Volt
Rated Input Current: 40 VAC: 46.2 AMP/120VAC: 20 AMP
Output Current Adjustment: 240 VAC: 50-250 AMP/120VAC: 50-140 AMP
Power Input At Rated Output: 240 VAC: 43.3 AMP/120VAC: 20 AMP
Output Voltage: 40 VAC: 16.5V �C 26.5V/120VAC: 16.5V �C 21.0V
Duty Cycle: 240 VAC: 60% @ 250 AMP and 100% @ 194 AMP/120VAC: 60% @ 140 AMP and 100% @ 60 AMP
Overall Dimensions: 20.07" x 8.66" x 19.69"
Weight: 46 LBS.
Wire Diameter: Solid Steel and Stainless Steel .023-0.45" (0.6-1.2mm) Flux Core 0.30-0.45" (0.8-1.2mm) Aluminum .030-0.35" (0.8-.9mm)
Post Flow Time: 1 +- 0.5 seconds
Wire Speed: 240 VAC: 80-530 ipm/120VAC: 80 �C 300 imp

Contents

(1) MIG 250 Welder
(1) Trafimet ERGOPLUS24 MIG torch
(1) Ground Cable with Clamp
(1) Shielding Gas Regulator
(1) Shielding Gas Hose
(1) Extra Contact Tips (2) .030" and (2) 0.040��
(1) 8" Wire Spool Adapter
(1) Steel MIG Wire, ER70S-6, 2lb., 0.030"
(1) 120/240 VAC Adapter Cord
(1) Handheld Face Shield
(1) Combo welding Brush and Hammer
(1) Contact Tip Wrench
(1) ER70S-6 MIG Wire Spool, 0.030�� (0.8mm), 2 lbs. (1kg)
(1) 0.023�� to 0.045�� (0.9 / 1.2 mm) Drive Roller
(1) Instruction Manual

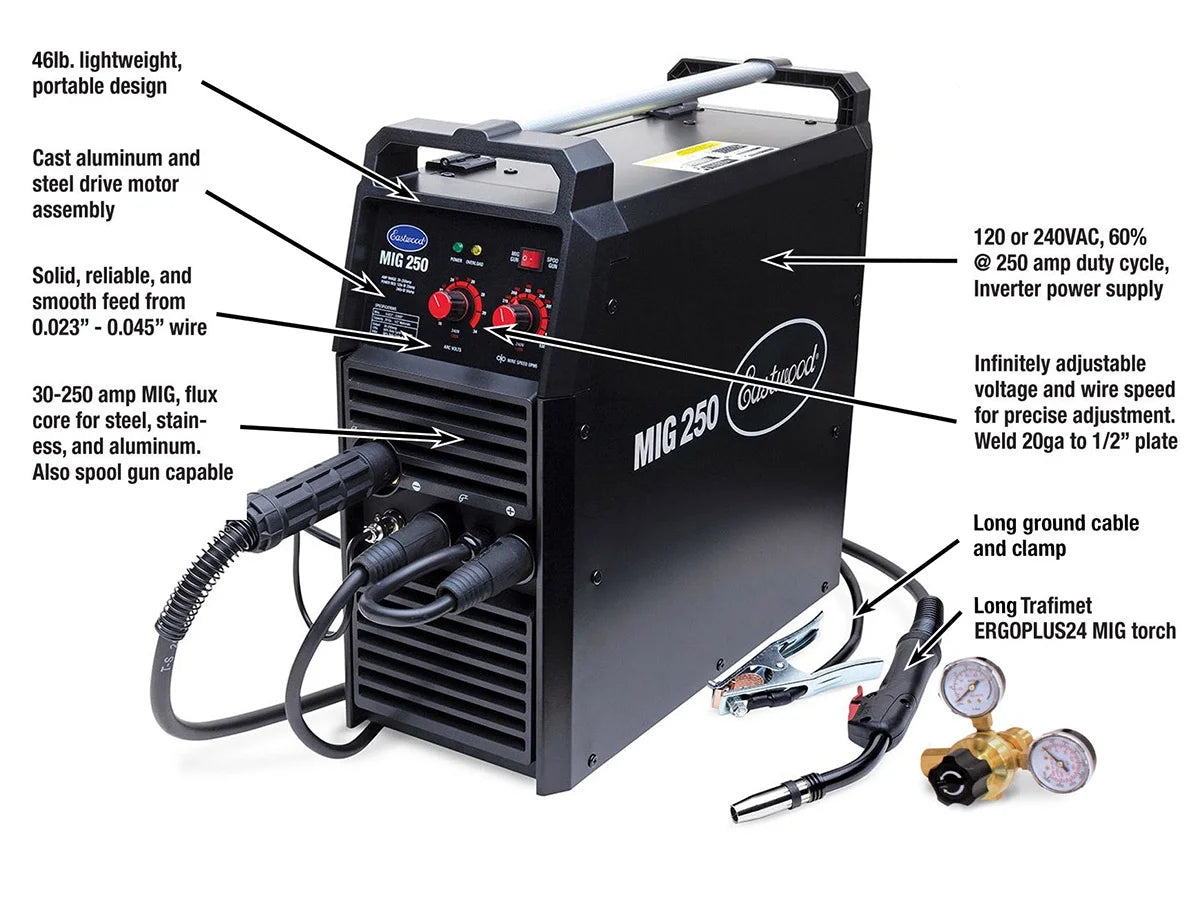

• 120 or 240 Volt Powered
• Infinitely adjustable 50-250 amp welding range
• 60 percent duty cycle at full 250 amp setting
• State of the art inverter technology
• Weighs just 46 lbs.
