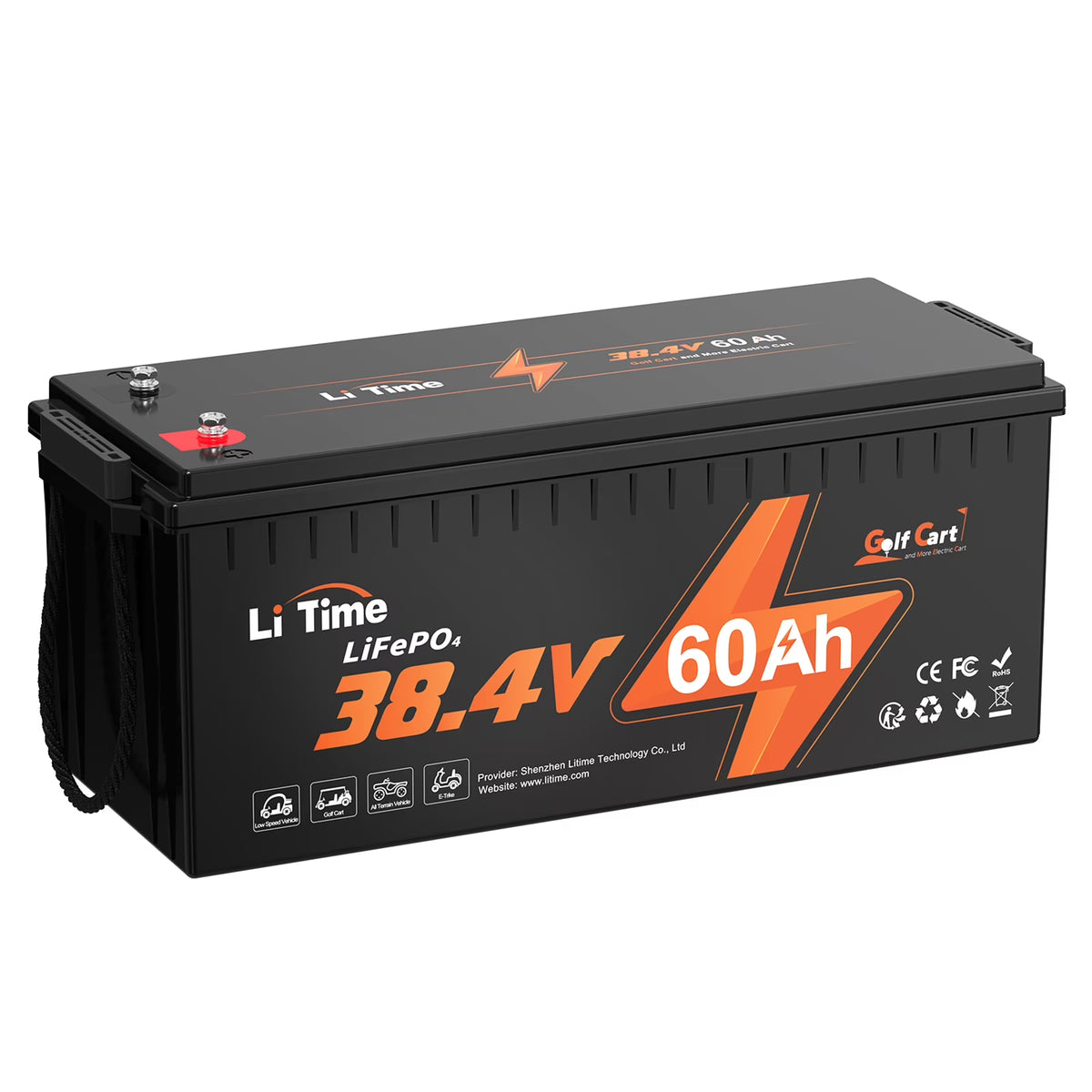

LiTime 36V 60Ah Golf Carts LiFePO4 Battery 120A BMS 2304Wh Energy Max. Power 4.6kW Support up to 3kW Motor

LiTime 36V(38.4V) 60Ah golf cart LiFePO4 Lithium battery has an integrated 120A BMS that could support Max. 2C rate discharging current. LiTime adopts 2C Rate Grade A cells, it has an extremely low self-discharge rate to preserve its power during periods of inactivity. A LiTime 36V(38.4V) 60Ah LiFePO4 Lithium battery weighs 1/4 as much as a set of lead acid golf cart batteries. 43.45lbs and longer life span makes this the ideal battery for all your electric vehicles, recreational vehicles, golf carts, boathouses, trolling motors, home backup power supply, etc.

BATTERY

1. Cell Type��LiFePO4 Prismatic
2. Warranty��5 Years

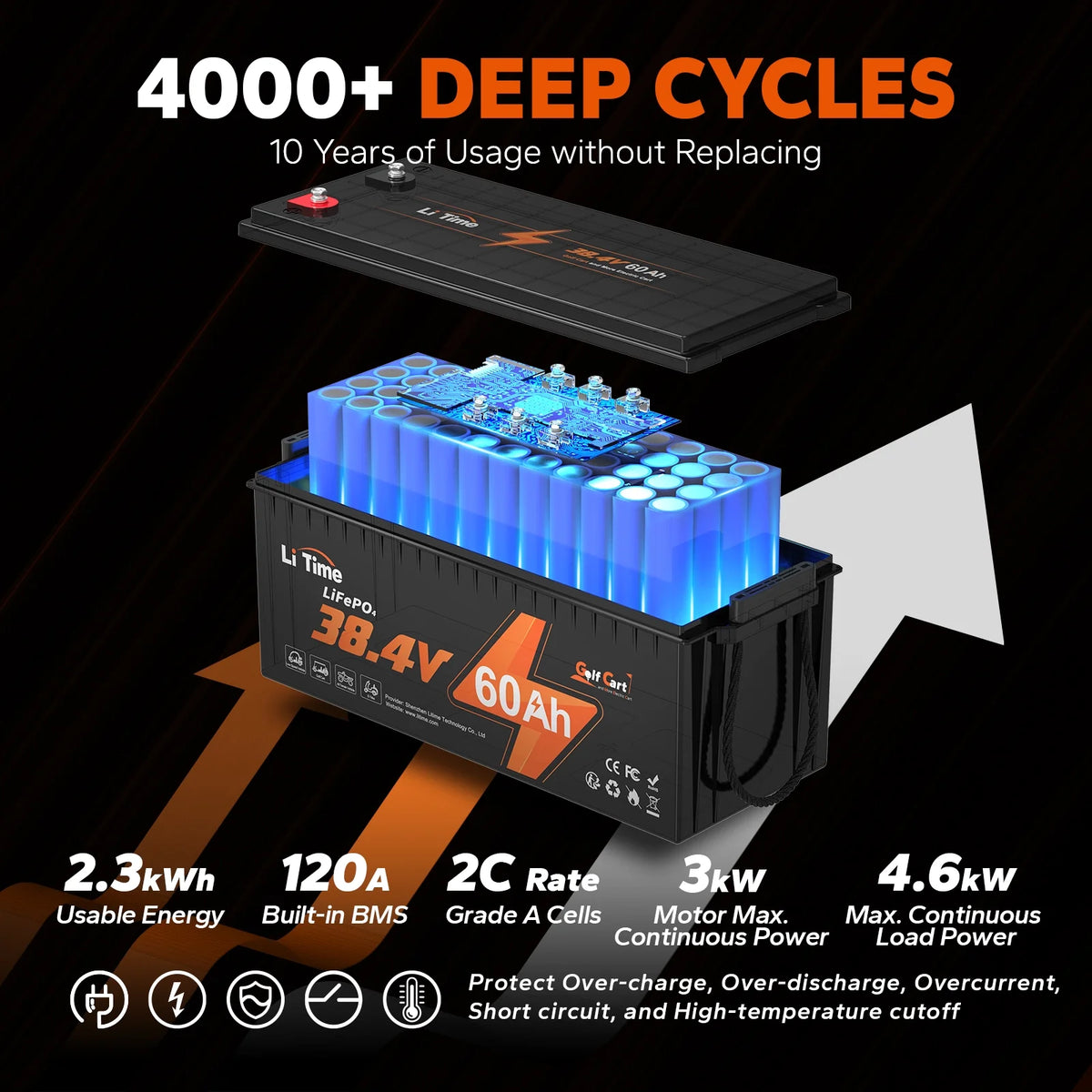

3. Cycle Life��4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
4. Nominal Voltage��38.4V
5. Rated Capacity��60Ah
6. Energy��2304Wh
7. Max. Expansion (Parallel & Series)��4P
8. Internal Resistance����40m��
9. Certifications��UL, FCC, CE, RoHS, UN38.3

BMS

1. BMS��120A
2. Max. Continuous Output Power:
3. For Golf Cart: 3000W
4. For Energy Storage: 4608W
5. Max. Continuous Charge Current��60A
6. Max. Continuous Discharge Current��120A

CHARGE

1. Charge Method��CC/CV
2. Charge Voltage��43.2V��0.6V
3. Recommend Charge Current��12A (0.2C)

TEMPERATURE

1. Charge Temperature��0�� to 50�� / 32�H to 122�H
2. Discharge Temperature��-20�� to 60�� / -4�H to 140�H
3. Storage Temperature��-10�� to 50�� / 14�H to 122�H

OTHERS

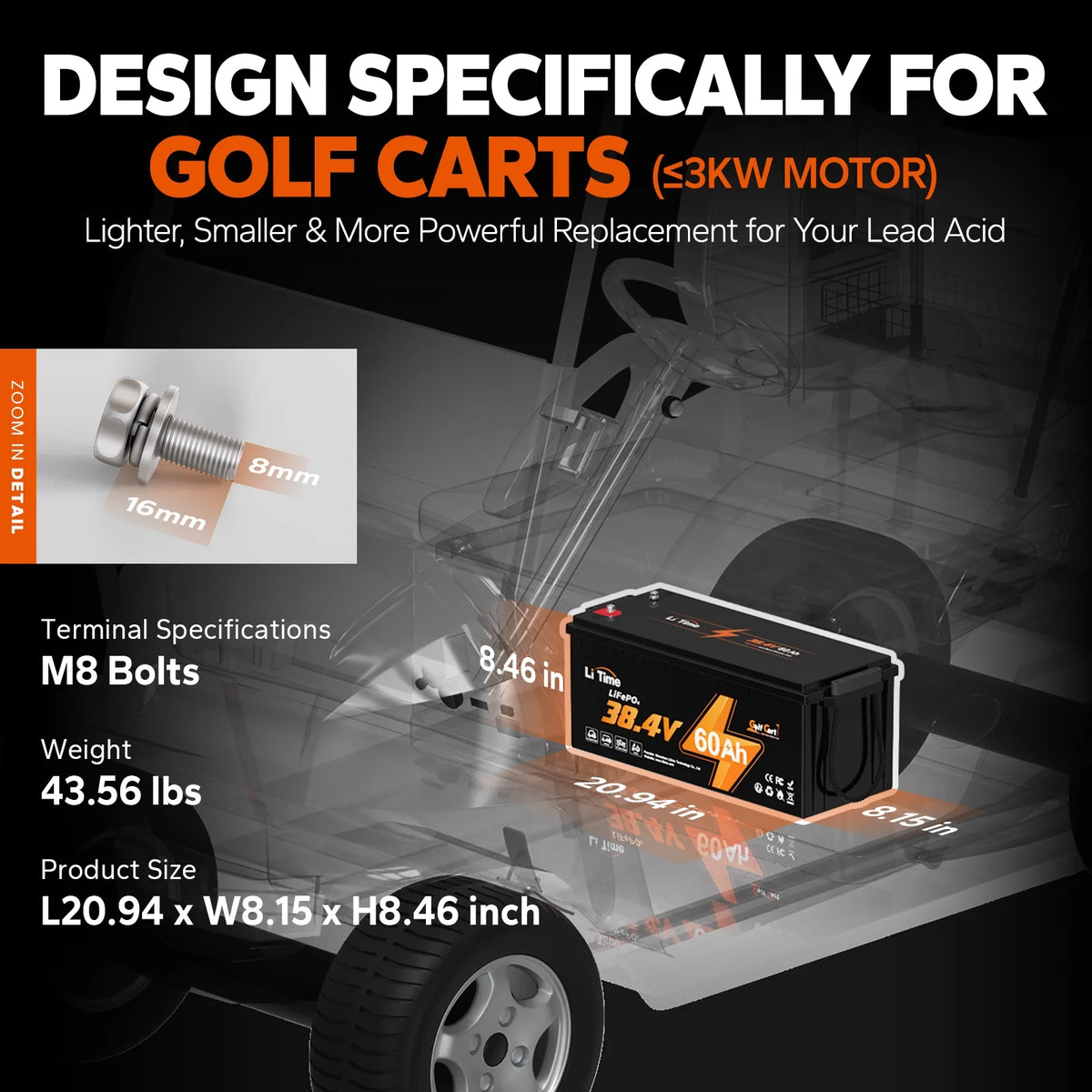

1. Terminals��M8 bolts
2. Weight Approx.��43.45 lbs
3. Size��L20.94*W8.15*H8.46 inch
4. Housing Material��ABS (Flame Retardant Plastic)
5. Protection Class��IP65

TIPS

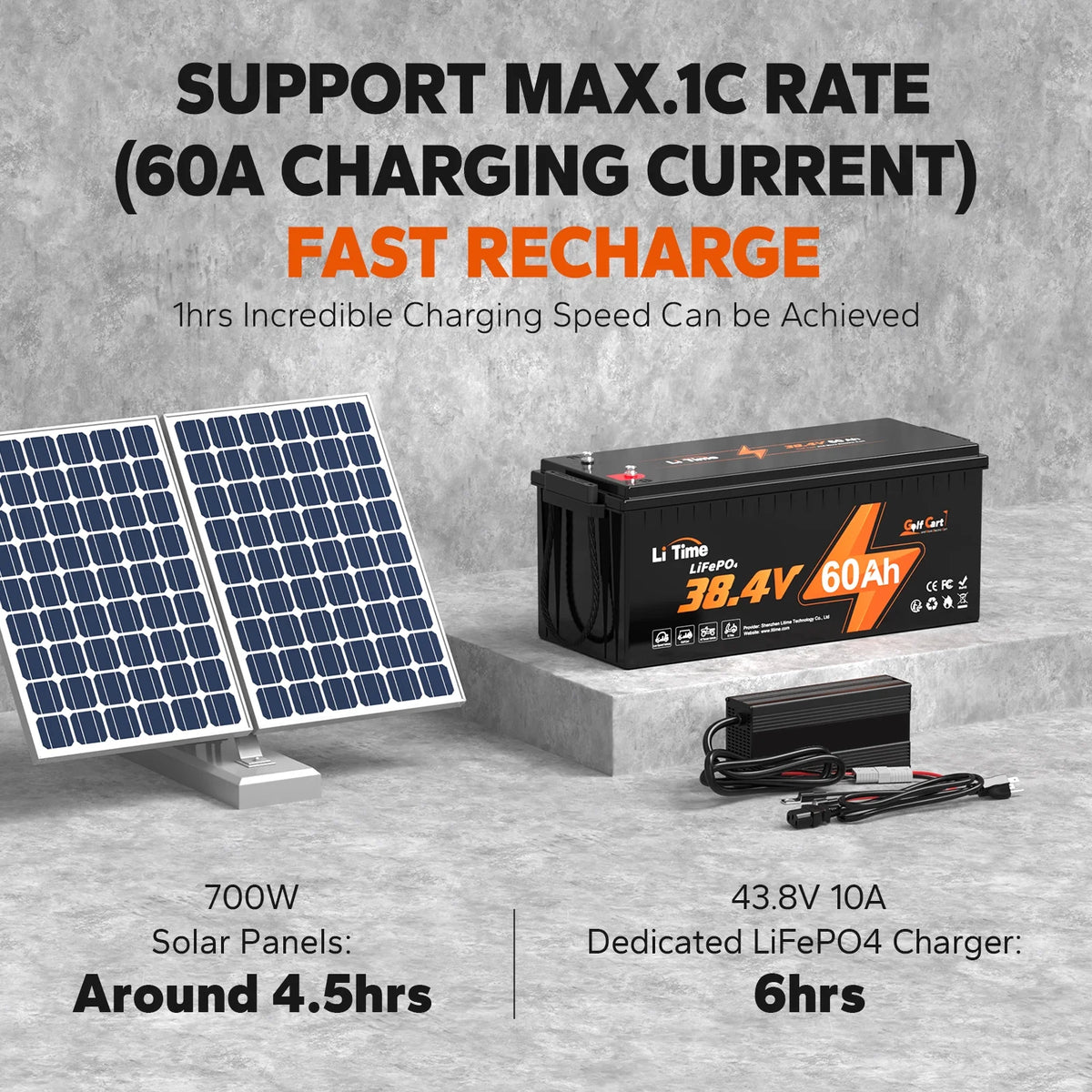

1. LiTime batteries for 36V golf cart supports Max 1C charging efficiency. You can charge it with LiFePO4 chargers, solar panels and generators.
2. Please use a 43.8V lithium charger to charge the batteries, other types of chargers may cause damage to the batteries due to different charging stages and modes. If you have related problems, please feel free to contact us.

• ��2C Rate Discharging Current[��LiTime 36V(38.4V) 60Ah golf cart LiFePO4 Lithium battery has an integrated 120A BMS that could support Max. 2C rate discharging current, suitable for all low-speed power vehicles (lower than 21MI/35KM/h), such as golf carts, electric shuttle buses, street-legal carts, and electric trike scooters.
• ��Large Capacity��LiTime 36V(38.4V) 60Ah golf cart LiFePO4 Lithium battery has a capacity of 2304Wh massive energy allows you to enjoy double runtime means more freedom on and off the green, making it a drop-in replacement of the AGM battery in the club carts nicely.
• ��Lightweight & Easy Installation�� A LiTime 36V(38.4V) 60Ah LiFePO4 Lithium battery weighs 1/4 as much as a set of lead acid golf cart batteries, allowing you to cut 200 lbs or more of your cart. Less weight means more maneuverability and speed and less wear & tear. Its perfect size makes it suitable for most golf carts, and relatively simple wiring requirements and the operation make it convenient to use.
• ��Automotive Grade A cells & Longer Lifespan��: LiTime adopts 2C Rate Grade A cells manufactured with high-quality materials and underwent rigorous testing to ensure their performance and durability, making carts run longer. It has an extremely low self-discharge rate to preserve its power during periods of inactivity.
• ��Widely Used Application��: LiTime 36V(38.4V) 60Ah LiFePO4 LiFePO4 Lithium battery can be used in electric vehicles, recreational vehicles, golf carts, boathouses, trolling motors, home backup power supply, etc. It has a flat voltage curve, which means its voltage does not drop as fast as the lead acid battery. It avoids the drawback of failing to run the motor due to the low voltage.
• ��Professional Customer Service��LiTime is dedicated to providing exceptional customer service and expert support for our products. Our online service team is readily available to assist you and ensure that you have the best experience with our products.
