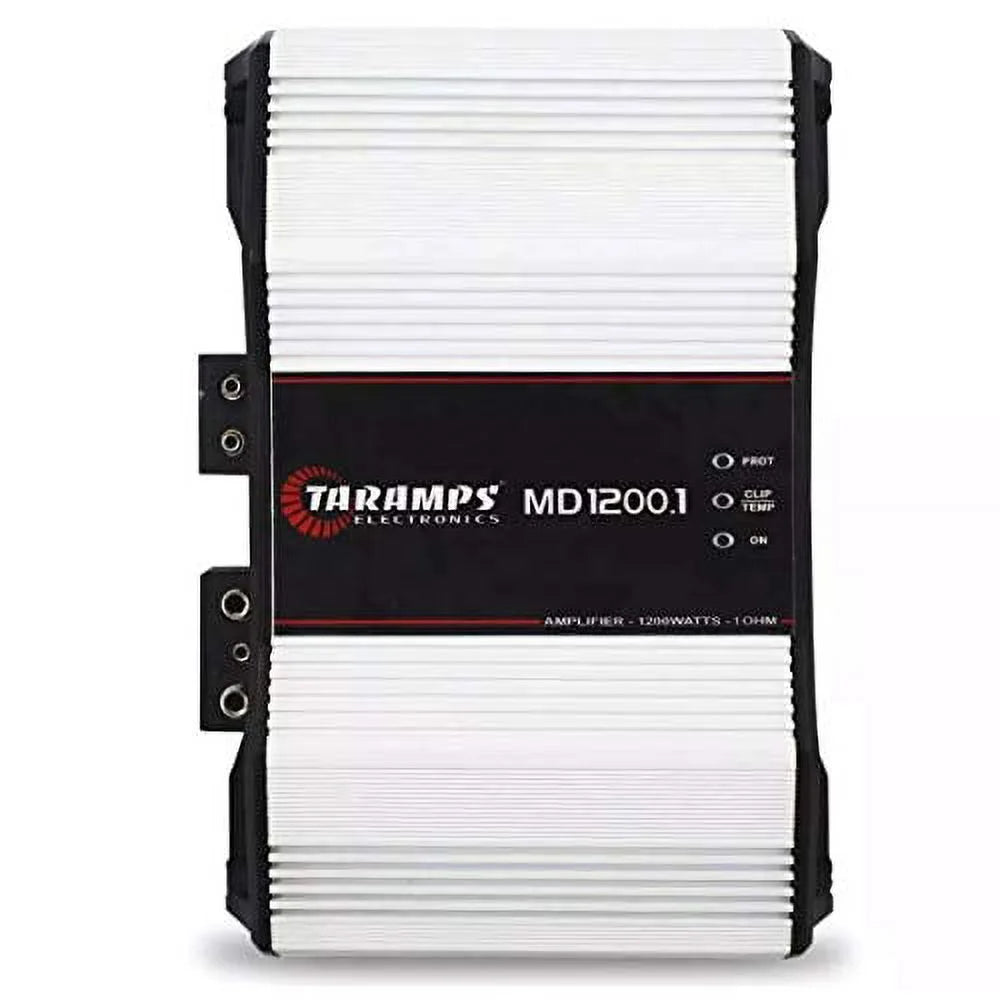

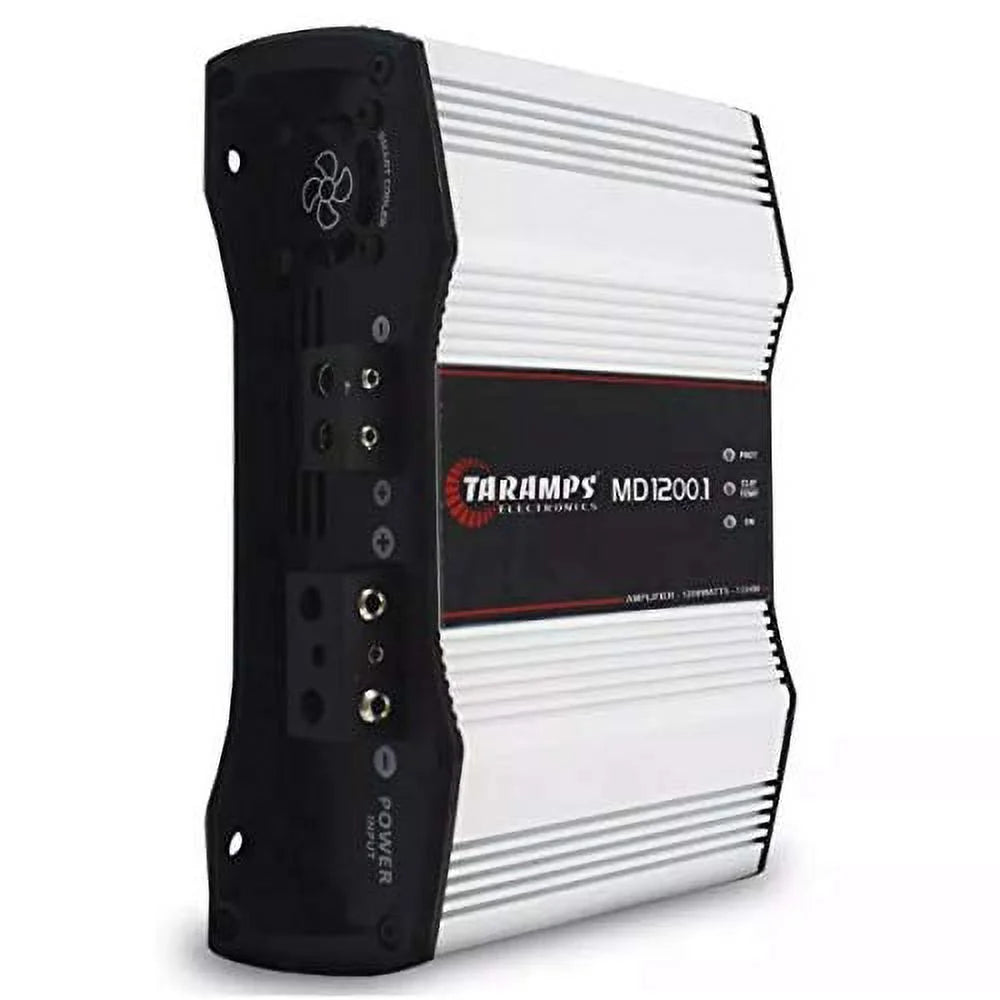

Taramp's MD 1200.1 1 Ohm 1200 Watts Class D Full Range Mono Amplifier

Taramps presents the amplifier module MD 1200.1 in the 1 ohm version. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 1200 Watts RMS. Welcome to the sound world of Taramps.

Product Highlights:

• OPERATION CLASS Class D
• NUMBER OF CHANNELS 01
• MAXIMUM POWER @ 12,6 VDC - 1 OHM: 1200W RMS
• @ 12,6 VDC - 2 OHMS: 1000W RMS
• INPUT SENSITIVITY 220mV
• SIGNAL TO NOISE RATIO >88dB
• FREQUENCY RESPONSE 10Hz to 20KHz (-3dB)
• CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8a) Variable
• CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8a) Variable
• BASS BOOST 0 ~ 10.5dB(50Hz)
• THERMAL MANAGEMENT Smart Cooler(fan controlled by temperature or audio, with 3 speeds)
• EFFICIENCY 77%
• INPUT IMPEDANCE 10K OHMS
• OUTPUT IMPEDANCE 1 OHM
• PROTECTION SYSTEM Output Short circuit / High or Low supply voltage / Thermal protection
• MIN. SUPPLY VOLTAGE 9 VDC
• MAXIMUM POWER SUPPLY VOLTAGE 16 VDC
• CONSUMPTION AT REST 1.7A
• MAXIMUM MUSIC CONSUMPTION @ 12,6 VDC: 62A
• MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @ 12,6VDC: 124A
• DIMENSIONS (H X W X D) 8.98" x 2.76" x 6.22"
• WEIGHT 3.96lb

• Excellent for voice as well as bass
• 2 ohms
• 1200 watts
