Wuzstar 7.5HP Outboard Motor Fishing Boat Engine With Wind Cooling System and 180-Degree Steering Function for Wooden Boats Bamboo Rafts

This product has a strong power of 7.5HP with four-stroke, which enables you to drive fast and save a lot of time and energy. It also has a 180-degree steering function, which is very easy to operate. The large capacity fuel tank also reduces the number of times you have to refuel, thus increasing your efficiency. Such an energy-saving, stable, and efficient outboard engine is a good assistant for your water operation

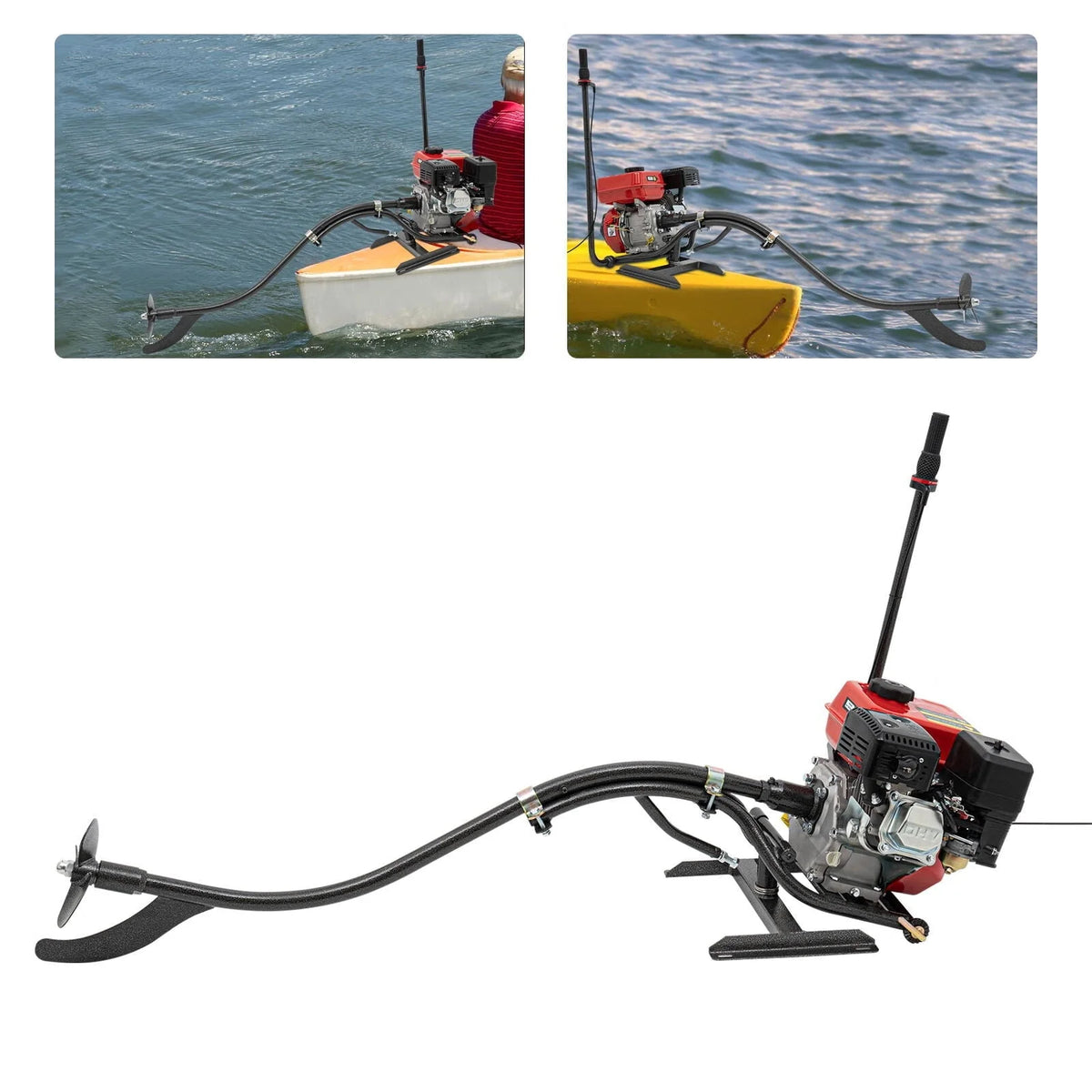

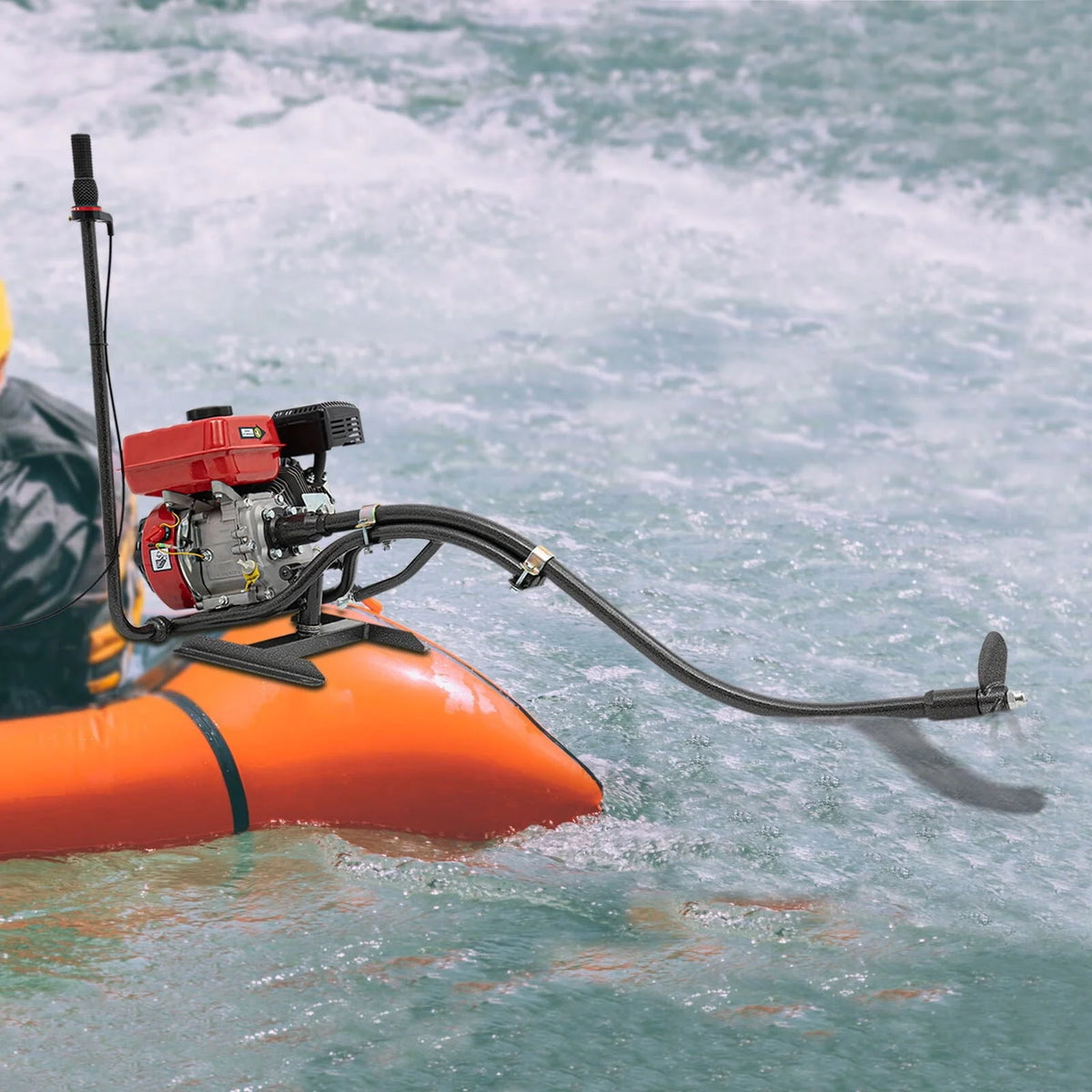

It is suitable for small boats of 9.84-19.69ft such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It applies to water operations in rivers, lakes, reservoirs, fish ponds, etc

Specification：

Color: Black and Red

Material: Aluminum and Steel

Surface Treatment: Spray Molding Process

Assembly Required: Yes

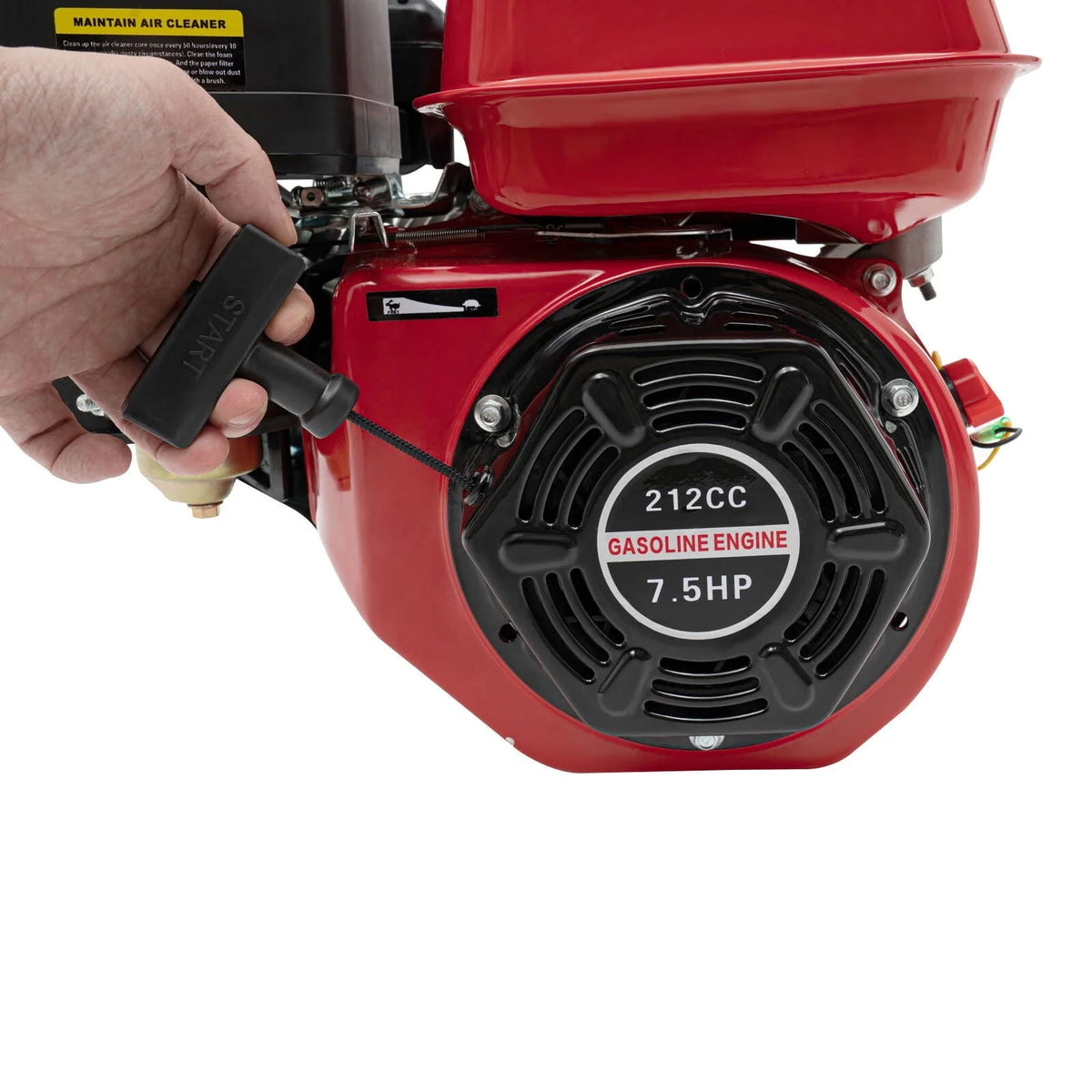

Starting Method: Manual Start

Recommended Fuel: Normal Unleaded Gasoline

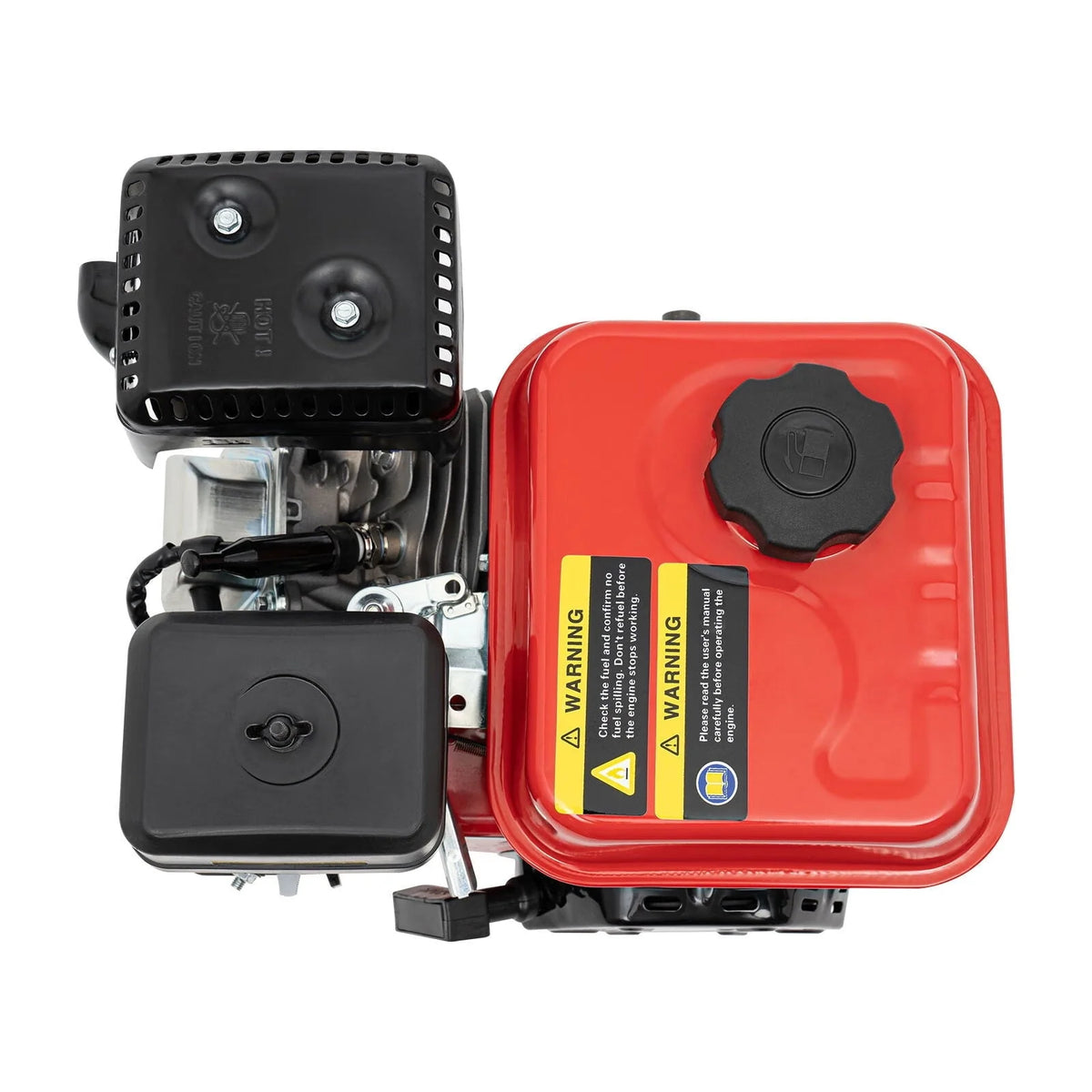

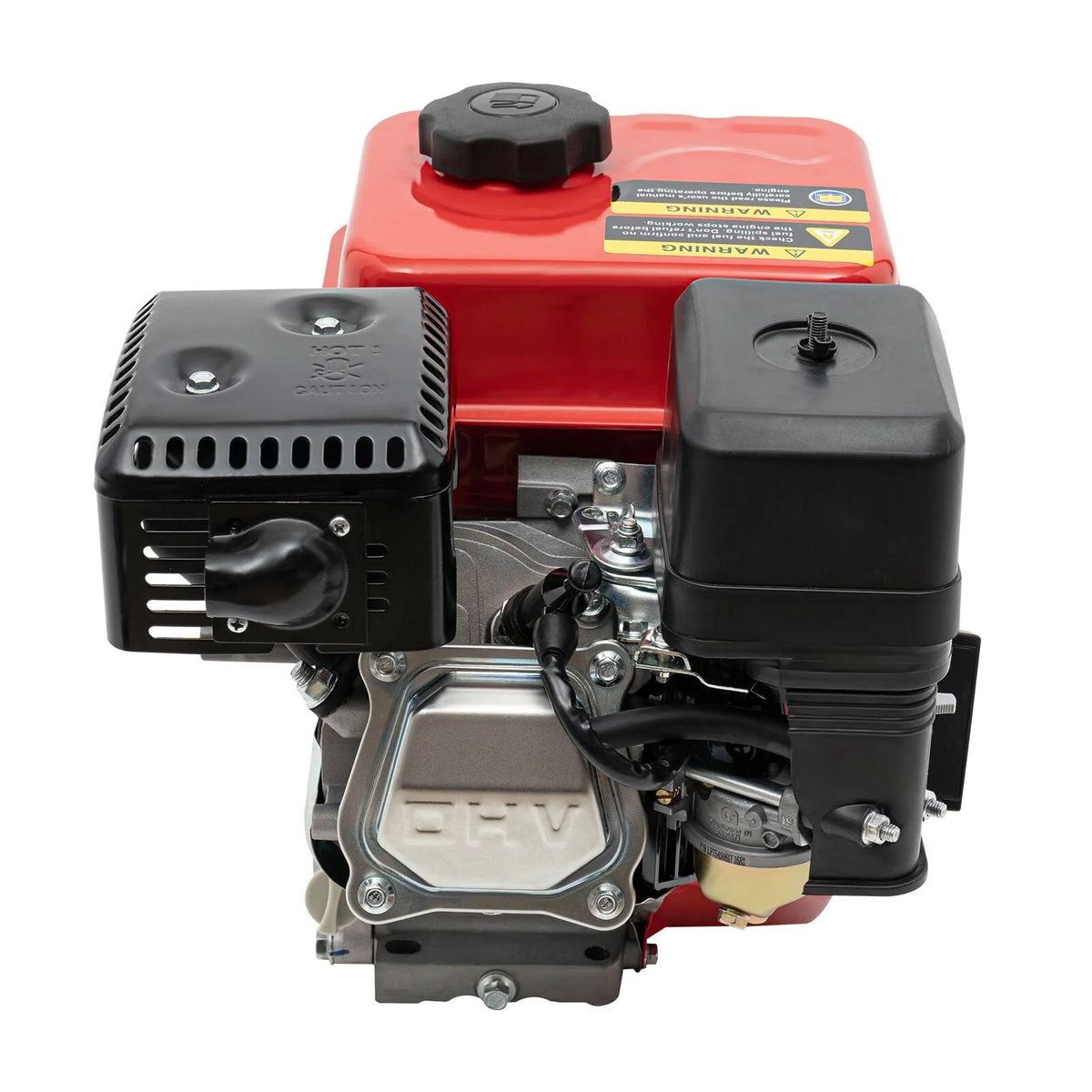

Engine Type: 4 Stroke, Single Cylinder, Air-cooled

Ignition System: TCI

Power: 7.5HP

Power Type: AWT170F/P(AWT170FD/P)

Bore*Stroke: 70*55mm/2.76*2.17in

Displacement: 212cc

Max Power: 4.3kW/3600rpm

Power Rating: 4.0kW/3600rpm

Peak Torque: 9.5N·m/2500rpm

Fuel Consumption: ≤395g/12.66oz/kW·h

Fuel Tank Capacity: About 3.6L/0.95gal

Oil Volume: 0.6L/0.16gal

Speed: 3600rpm

Running Time: About 3 Hours

Steering Angle: 180°

Operating Speed: ≥ 9.5km/5.9miles/h

Applicable Boat Size: 3-6m/9.84-19.69ft

Rack:

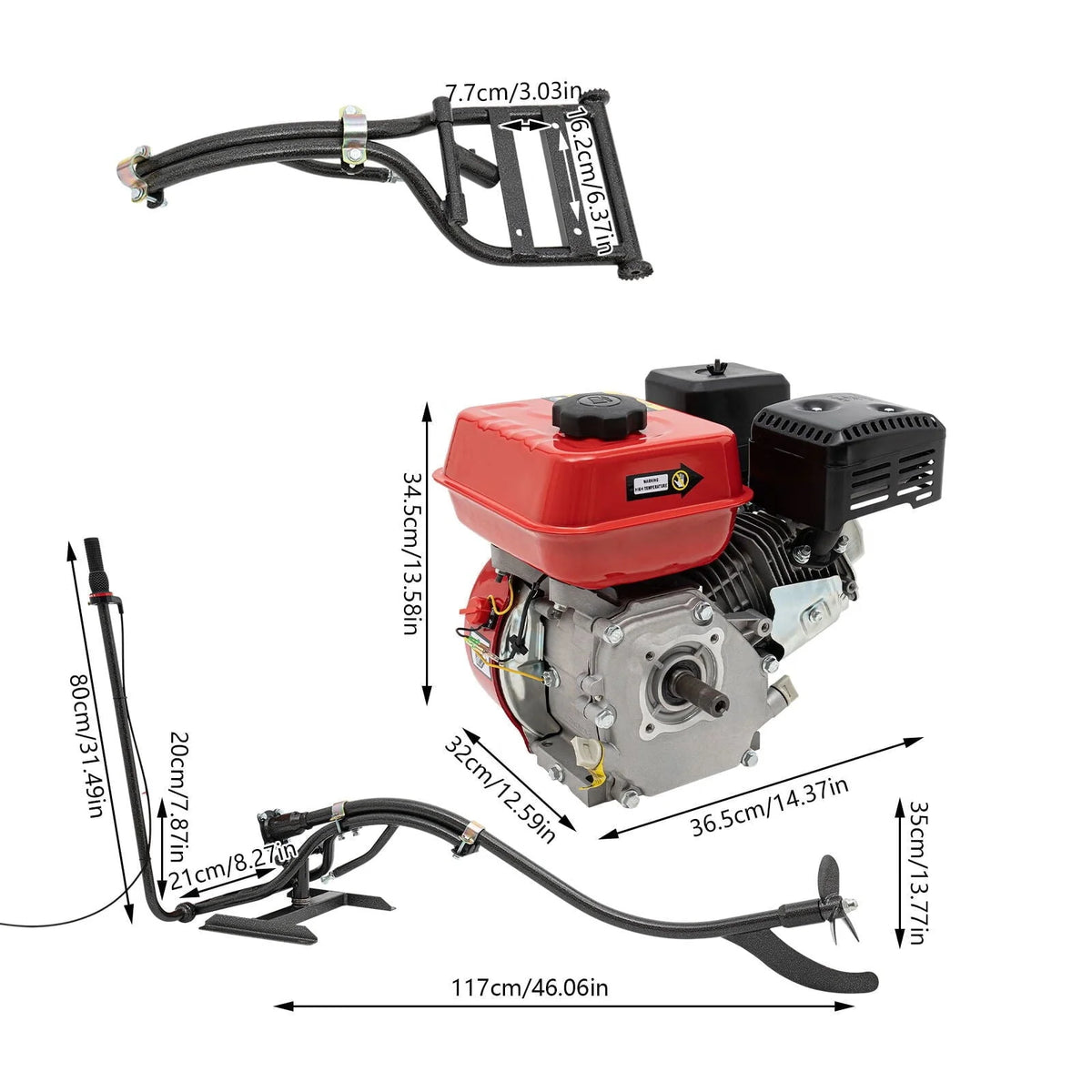

Rack Size(L&H): 101(80+21cm)*20cm/39.76(31.49+8.27)*7.87in

Net Weight: 18.5kg/40.79lbs

Gross Weight(kg): 19.6kg/43.21lbs

Package Size: 135*29*19cm/53.15*11.42*7.48in

Engine:

Engine Size: 36.5*32*34.5cm/14.37*12.59*13.58in

Net Weight: 19kg/41.89lbs

Gross Weight(kg): 26.8kg/59.08lbs

Package Size: 42*47*45cm/16.54*18.5*17.72in

Package Included：

1 * Four-stroke Outboard Engine

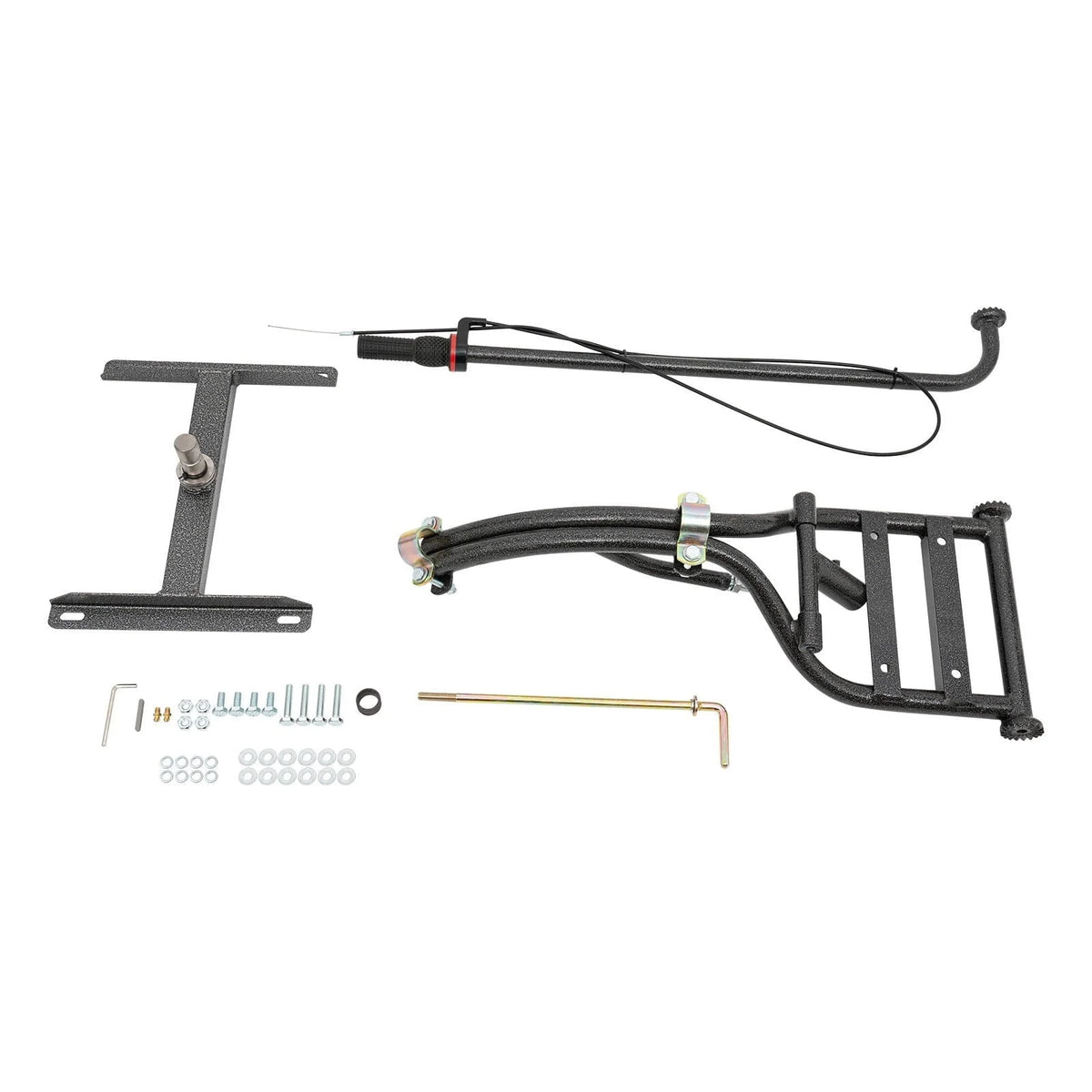

1 * Rack

1 * English  Manual

Other Accessories for Installation
